BELLUCCI SRL

BOTTERO LAMINATED CUTTING LINE BOTTERO 535 AVM/37 - Year 2008 Cutting Table for Laminated Glass Max Cutting Dimensions 3700x3210 mm Min. Cutting Dimensions 150x125 mm Thickness 3-8 mm (monolithic) 2+2 min. (laminated) 8+8 max (laminated) Speed 140 m/min. Basic power installed 25,2 kW + BOTTERO 100 BLC Loading Table with Belts Jumbo

LISEC PVB AND SGP LINE - Year 2008 Processing dimensions 2600x5000 mm (can also do 5500 mm) Terruzzi autoclave Radiator Cooling tower Unwinder 20 rolls (8 automatic + 8 semiautomatic + 4 spare) 2 trolleys no. 2 first kiln ironers no. 1 Lisec washing machine 6 brushes, 4 tanks - Autoclave TERRUZZI FERCALX Mod. 3000x6000 NF 4575 Design Pressure 15 Ps Hydrostatic Test Pressure 22,3 Pt Design Temperature -10/+150 Ts Fluid: Air Total Capacity 51.600 Lt Power 250 kW (Compressor 37 kW)

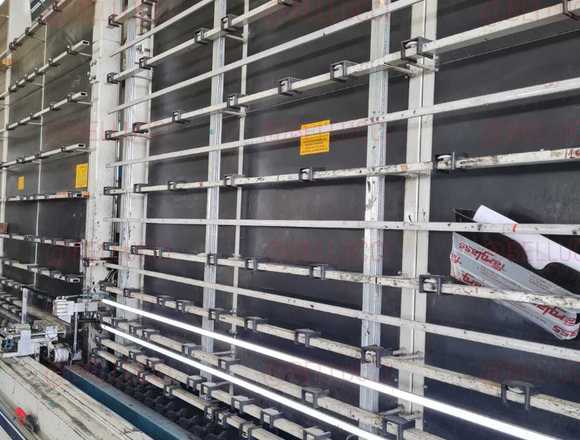

FOREL SA 1325 A6 - Year 2007 Automatic Glass Sealing Machine Minimum dimensions of double glazing panel 320 mm x H=180 mm Maximum double glazing panel dimensions (rectangles) 4500 mm x H=2500 mm Maximum dimensions of double glazing panel (with "shaped" options) ..4200 mm x H=2500 mm Total thickness of double glazing panel from 12 to 50 mm Triple glass total thickness (optional) 50 mm Maximum transportable weight 200 kg/m Transport speed (max.) 630mm/s Sealing speed (max.) 500mm/s Productivity according to the type of double glazing Worktop height 640mm Power 10 kW Air consumption 400 Nl/min. Sealant used: polysulphide

BAVELLONI SB10 - Year 1997 Sagomatrice Shaping Machine Min workable 100 mm Max workable 2100 mm Thickness 3+40 mm Max bevel 40 mm Power 3.5 kw

EMAR M2002 - Year 2007 SEMI-AUTOMATIC LINE FOR INSULATING GLASS H 2000 mm 6 Brushes Low-e Inlet 3000 mm Outlet 3000 mm Installation of double glazing channel 3000 mm Roller press 1000 mm (width) Folding table 3000 mm

BAVELLONI MAX 80 CNP - Year 2011 13 Cup Wheels Beveller Min. Size 40x40 mm Speed 0,5-4,1 m/min. Thickness 3-25 mm Max Bevel Width 60 mm Power 26 kW Machine Dimensions : 8,4 x 1,7 x 2,3 m Weight : 5300 kg

EFFECI TP 1832 1C 1S - Year 2008 Tempering Furnace Working Dimensions 1800 x 3200 mm Minimum dimensions 160x160 mm Thickness 4-25 mm Low-E (Convection) Production capacity load/h 20 Power 5 kW (Stand by) 180 kW (4mm) Air consumption: 4 mc/min. (Convection) Air pressure: 6 bar (Normal use) 8 bar (Maximum

BAVELLONI VDM 1636 - Year 2019 Vertical Drilling Milling Machine Workable thicknesses 3 –19 mm Holes diameter 4 – 60 mm Maximum length of notches 260 mm Maximum length of notches on the up side of glass 230 mm Minimum workable dimensions (LxH) drilling 420 x 300 mm Minimum workable dimensions (LxH) milling 900 x 420 mm Maximum workable dimensions (LxH) drilling 3600 x 1600 mm Maximum workable dimensions (LxH) milling 3600 x 1450 mm Maximum glass size (LxH), transit only 3600 x 2200 mm Spindles maximum rotation speed 12.000 rpm Min. pressure of compressed air 6 bar
